PhotonicPlug

A fiber connector product for assembly of single-mode fibers with silicon photonic chip

Simple and highly scalable packaging flow

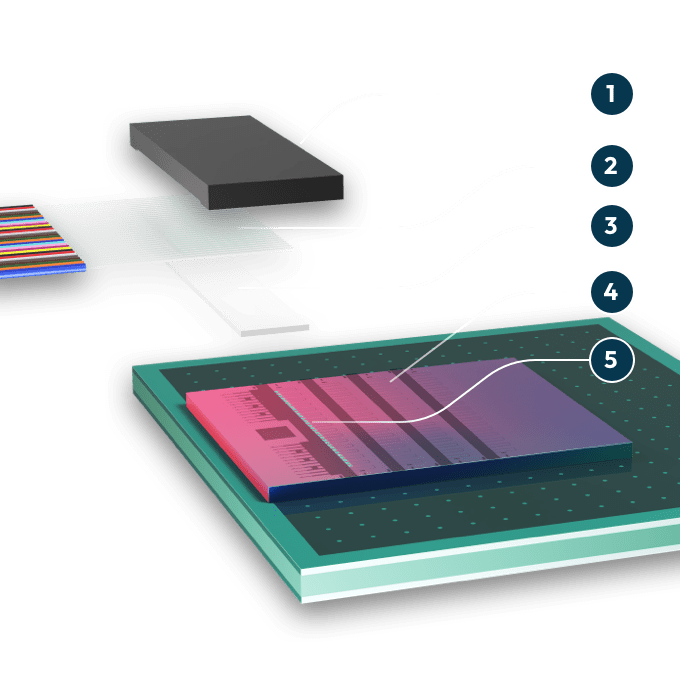

PhotonicPlug die with self-aligning optics

32 single-mode fiber ribbon *

Glass spacer *

Silicon Photonic chip with PhotonicBump

PhotonicBump

* pre-assembled with the PhotonicPlug and shipped to customer’s preferred OSAT

Key Advantages:

Scalabale

Provides large assembly tolerances for scalable fiber packaging

Multi-fiber

Enables assembly of large number of fibers

Reliable

Aligns fiber assembly with standard high-volume semiconductor manufacturing, packaging and testing

Teramount Photonic Plug solutions
